      In-Vehicle Series

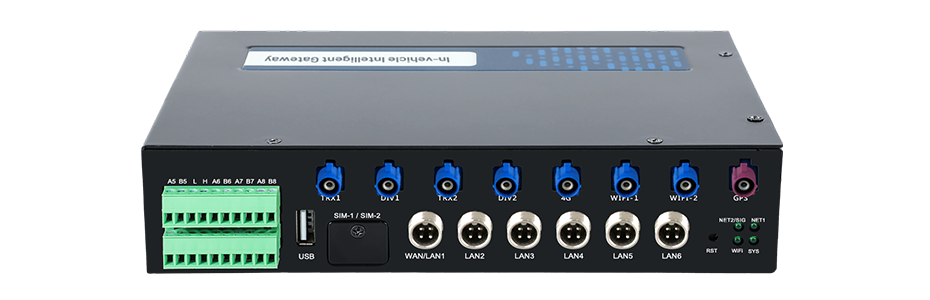

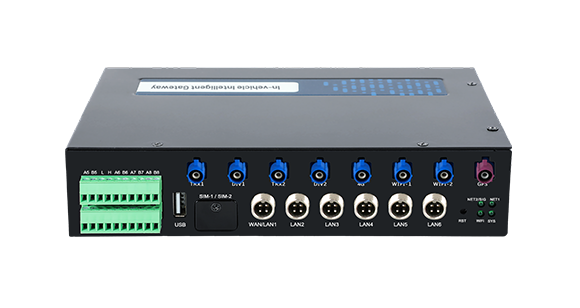

      H3380 Dual-mode 5G Vehicle-mounted Integrated Gateway

      • Support 5G Sub6, 5GLAN, RedCap
      • Support 6×RS-485, 2×RS-232, 1×USB
      • Industrial grade standard design
      • Widely used in vehicles and industrial sites
      Product Introduction
      H3380 Dual-mode 5G Vehicle-mounted Integrated Gateway is a comprehensive gateway product for pan-vehicle applications. This product is mainly applied to vehicle and industrial field video transmission service, equipped with dual-mode 5G, supporting dual transmitter-receiver and link load balancing, fully meets the uplink network bandwidth and stability requirements for audio and video services.
      • Support 6×RS-485, 2×RS-232, 1×USB
      • Industrial grade standard design
      • Widely used in vehicles and industrial sites
      Advanced Dialing Capabilities
      • Supports 5G Sub6, 5G LAN, and RedCap
      • Supports 5G Multi-DNN Dialing and Network Slicing
      • Supports 5G LAN and URLLC (Ultra-Reliable Low-Latency Communication)
      • Enables Dual-Mode 5G for simultaneous transmission and reception or hot standby
      Protocol Support
      • Compatible with mainstream communication protocols such as Modbus TCP/RTU and MQTT
      • Supports industrial protocols including OPC, DLT645, and DNP3.0
      • Fully compatible with PLC brands such as Siemens, Omron, Panasonic, and Mitsubishi
      VPN Features
      • Supports VPN protocols including L2TP, PPTP, GRE, IPIP, IPSec, and OpenVPN
      Security Management
      • NAT Firewall support
      • Secure login with SSH
      • Advanced filtering for IP, MAC, domain names, and ports
      Remote Management
      • Unified device management through Wedora Cloud
      • Camera business management via the iScan Platform
      Penetration Management
      • Supports remote lower-level device penetration management through Wedora Cloud
      • Enables unified networking without IT intervention for VPN setup via Wedora Cloud
      • Provides cloud-based PLC automatic networking functionality through Wedora Cloud
      Hardware
      Network format 5G+4G Dual Mode or Dual 5G Hot Standby
      Module embedded Default: Quectel RM500U-EA (M.2)
      Optional: RM520N (M.2) / EG912N-EN / EC2x / EG2x (mPCIe)
      Interfaces
      Antenna FAKRA D-coded male
      SIM Card Slots 2 SIM Card Slots (supports 1.8V/3.0V)
      Ethernet Ports LAN Ports: 5x 10/100/1000 Mbps auto-negotiation
      WAN/LAN Port: 1x 10/100/1000 Mbps auto-negotiation
      USB Port 1 x USB 2.0 (for data storage or Wi-Fi extension)
      20-Pin Terminal RS485: 6 ports (configurable, 300–115200 bps)
      RS232: 2 ports (configurable, 300–115200 bps)
      CAN Interface: 1 port (customized model)
      Button 1 RESET button（press and hold for more than 5 seconds to restore factory settings)
      Storage TF Card Slot (customized model)
      WLAN 2,4 GHz optional
      GNSS optional with RM520N 5G-module or additonal mPCIe LTE module
      internal mPCIe slot for additional LTE or 450MHz-module
      Mobile Network Support
      Supported Networks UMTS Bands: B1, B2, B5, B8
      LTE Bands: B1/2/3/4/5/7/8/20/28
      5G Bands:
      5G NR NSA: n1/3/7/28/38/40/41/77/78
      5G NR SA: n1/3/5/7/8/20/28/38/40/41/66/71*/77/78
      MIMO Support：
      DL 4x4 MIMO: n1/3/7/28/38/40/41/66/77/78
      UL 2x2 MIMO: n38/40/41/77/78
      DL 2x2 MIMO: n5/8/20/71*
      Transmission Rates 5G Maximum Rates: ≤2 Gbps (DL) / ≤1 Gbps (UL)
      Power Supply
      Operating Voltage +9V to +48V DC (with reverse polarity protection)
      Power Consumption
      Idle State Approx. 600 mA @ 12V DC (no data transmission)
      Maximum Approx. 1200 mA @ 12V DC
      Typical Approx. 900 mA @ 12V DC (data transmission)
      Additional Features
      Weight Approx. 900g (single module)
      Dimensions 220.0 x 142.0 x 47.0 mm (excluding power, antenna connectors, and brackets)
      Operating Temperature -30°C to +75°C
      Storage Temperature -40°C to +85°C
      Relative Humidity <95% (non-condensing)
      Protection class IP20
      Operating System OpenWRT 24 (fully programmable and configurable embedded Linux system)
      Electromagnetic Compatibility Conforms to EMC Directive 2014/30/EU (CE marking)
      Optional: ECE R10
      Security TPM 2.0, Secure Boot, Watchdog
      Development complies with IEC 62443-4.1


      File Name
      Hongdian Datasheet-H3380 Dual-mode 5G Vehicle-mounted Integrated Gateway
