    Consumer Routers

    H101C AC1200 5G CPE

    • UniSOC IVY510 platform, UDX710 5G chipset
    • Support 3GPP Rel-15 5G NSA&SA Sub-6
    • 2.4G & 5G dual-band WiFi
    • Up to 8 built-in antennas

    Product Introduction

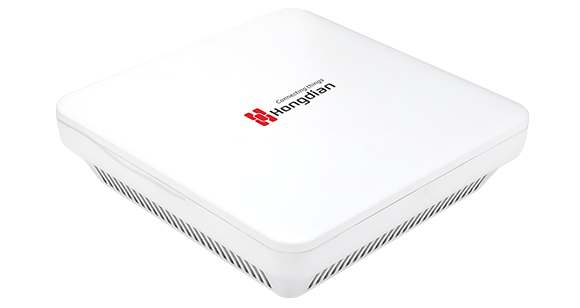

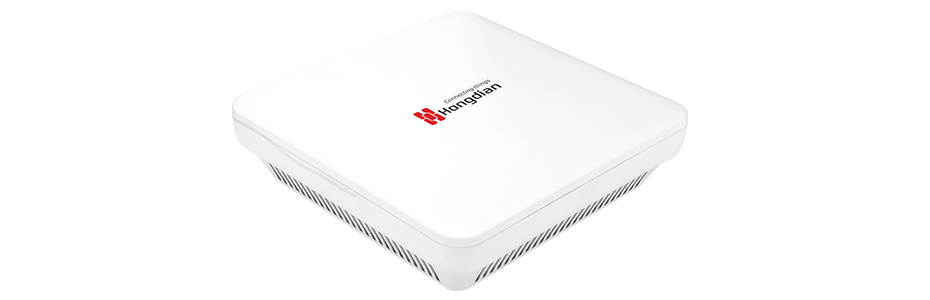

    H101C 5G CPE is a 5G desktop CPE specially designed for SME and smart home cases. It adopts a simple, integrated and fashionable design with 8 built-in antennas. With lying design and square appearance, it can plug and play to provide a high-speed network access point in SME or families.
    UniSOC Solution
    • UniSOC IVY510 platform, UDX710 5G chipset
    • Support 3GPP Rel-15 5G NSA&SA Sub-6
    Wi-Fi 5
    • 2.4G & 5G dual-band WiFi, omnidirectional high-gain Wi-Fi antenna, support up to 64 users
    • Wi-Fi5 AC1200 specification
    Better Signal
    • Up to 8 built-in antennas ensure MIMO concurrent speed
    • 3D stereo stacking design antenna ensures minimal interference and optimal reception
    Appearance
    • Lying design and square appearance
    • High efficient ventilation
    • Wall mounted
    Safety & Reliable
    • Wired/wireless network backup
    • Mutiple VPNs, support firewall
    • Visitor network and SMS-based authentication of portal
    Cellular
    Standard 3GPP Rel-15 NSA/SA
    Region For EMEA and related countries
    NR bands NSA: n41/n78/n79, SA: n1/n28/n41/n77/n78/n79
    LTE category DL Cat 12/ UL Cat 13
    MIMO DL 4 × 4 MIMO on: n1/n41/n77/n78/n79
    LTE-TDD B34/B38/B39/B40/B41
    LTE-FDD B1/B3/B5/B8
    Built-in antenna 4G/5G antenna × 4
    WCDMA B1/B2/B5/B8
    Max data rates 5G NSA Sub-6: 2.2 Gbp(DL)/575 Mbps (UL), 5G SA Sub-6: 2Gbps (DL)/ 1Gbps(UL), LTE: 400 Mbps (DL)/150 Mbps (UL)
    Wireless
    Standard Wi-Fi 5, 802.11 a/b/g/n/ac
    2.4 GHz 2 × 2 MIMO, 300Mbps
    5 GHz 2 × 2 MIMO, 866Mbps
    Max User 64
    Built-in antenna Wi-Fi antenna × 4 (MU MIMO)

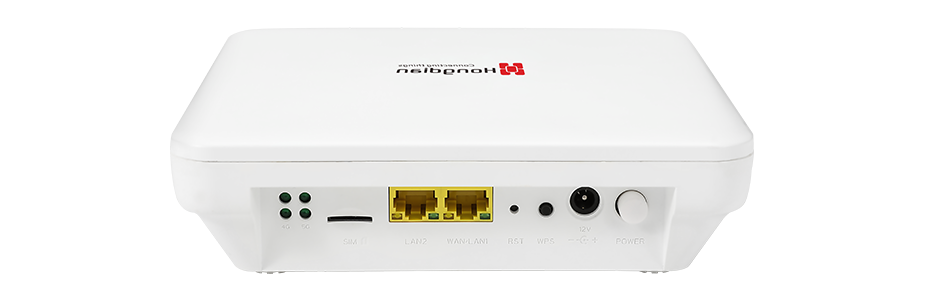

    Interface
    LED Power, Wi-Fi, 4G, 5G
    Button RESET, Power, WPS
    SIM Micro SIM
    Ethernet 1 GigE LAN, 1 GigE WAN/LAN
    Power Supply

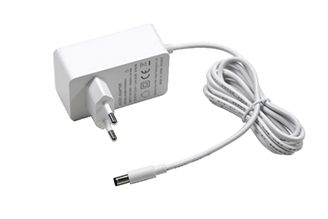

    Power input Power adaptor, DC socket
    Voltage 12V/1.5A
    Others
    Weight Approx. 450g
    Size 175 × 175 × 48.5mm
    Operating temperature -10～+45°C
    Storage temperature -40～+70°C
    Relative humidity ≤ 95%(no condensing)
    File Name
    Hongdian Datasheet-H101C AC1200 5G CPE Datasheet-2023V1.0
    Model 5G modem MIMO WLAN RJ45 Region
    H101C 5G NR:
    3GPP Release 15 NSA/SA
    operation, Sub-6 GHz
    5G NSA & SA:
    N1/N28/N41/N77/N78/N79
    4G LTE-FDD:
    B1/B3/B5/B7/B8/B18/B19/B20/B28
    /B32
    4G LTE-TDD:
    B34/B38/B39/B40/B41/B42
    3G WCDMA:
    B1/B2/B5/B8     		5G DL 4 × 4 MIMO on:
    n1/n41/n77/n78/n79
    LTE Cat 12 DL 2×2 MIMO
    on:
    B1/B2/B3/B5/B7/B8/B20/
    B28/B34/B38/B39/B40/
    B41     		Wi-Fi 5 2.4GHz & 5GHz 1×10/100/1000bps LAN;
    1×10/100/1000/2500Mbps
    LAN/WAN     		China/Korea/Australia
