    AIoT Gateway
    Hongdian AIoT Gateway series has high-performance AI processor, embedded with mature algorithms based on deep learning and integrated with Hongdian self-developed AI algorithm model, and can be widely used in scenarios such as smart power, smart transportation, smart construction, smart gas and vehicle scenes. The series supports 4G/5G networks and can achieve high-speed uploading and remote management of video and picture information after collecting local data, effectively reducing latency.
    contact us
    Product Value
    Cost Benefits
    Add intelligence to existing legacy cameras and sensors with an Edge AI Box solution. Maximize investments and avoid costly upgrades and installation costs

    01

    High Performance Machine Learning(ML) with AI Power Efficiency
    Easily add ML models that run power efficiently, with the ability to run simultaneous AI models all across the cameras in same network

    02

    Product Advantages
    Advanced AI Capabilities and Support 300+ Industrial Protocols
    Diverse Interfaces for Seamless Device Integration
    4G, 5G, LoRa, etc networking for stable and secure network connections
    Enable Sophisticated Automation and Cloud-edge Collaboration

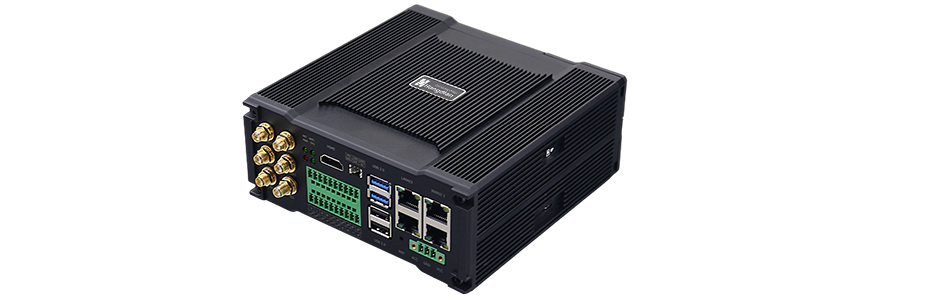

    AIoT Gateway Series
    Application
    Product Comparison Table

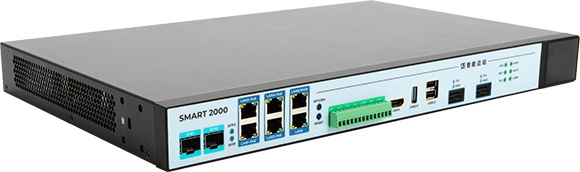

    AI Box Smart 2000
    Hardware
    CPU RK3399, highest frequency: 1.8GHz; 64 bits
    NPU N/A
    Memory 2GB
    Built-in storage 16GB
    Cellular Interface
    Modem 1 LTECAT4
    Number of Antennas 1
    SIM 1 x Mini SIM (2FF)
    Wireless Interface
    Standards N/A
    Frequency Bands
    Speed
    Antennas
    GNSS Interface
    Number of Antennas N/A
    Peripheral Interface
    Serial 3 x RS-232 (1 RS232 port can be configured as a RS485 port),DB9 male connector ;
    1 x RS-485 serial port,3-pin 3.5 mm female socket
    Ethernet 1x 10/100/1000 Mbps, Gigabit Ethernet
    USB USB 2.0 x 4, USB 3.0 x 2, OTG x1
    Display HDMI 2.0 x 1
    Display Performance
    Liquid Crystal N/A
    Screen Size
    Resolution
    Brightness
    Contact Performance
    Transmittance N/A
    Glass Material
    Max Touch Points
    Software
    Operating System Android 7.1.2/Linux
    Video code H.265/H.264/VP9 4K@60fpsHD video decoding
    Image processing BMP, JPG, PNG, GIF
    Power Supply and Consumption
    Connector 4 pin socket
    Voltage Input 12V DC
    Power Consumption Less than 10 W (only system)
    Others
    Reset Button Yes
    LED Indicators 4 indicators for PWR, SYS, 4G, WIFI
    Hardware Watchdog Yes
    Physical Characteristics
    Ingress Protection IP30
    Housing & Weight Metal
    Dimension 170*150*27mm
    Installations Wall-mounting
    Operating Temperature -20 ~ +70 °C
    Storage Temperature -40 ~ +85 °C
    Relative Humidity 5 ~ 95% RH
    Certifications
    (*In progress)
