| Hardware |
| CPU | Quad-core ARM Cortex A7 @717MHz |
| RAM | 512MB |
| FLASH | 32MB+8GB eMMC |
| Cellular Interface |
| Modem | 1 x 5G NR SA/NSA |

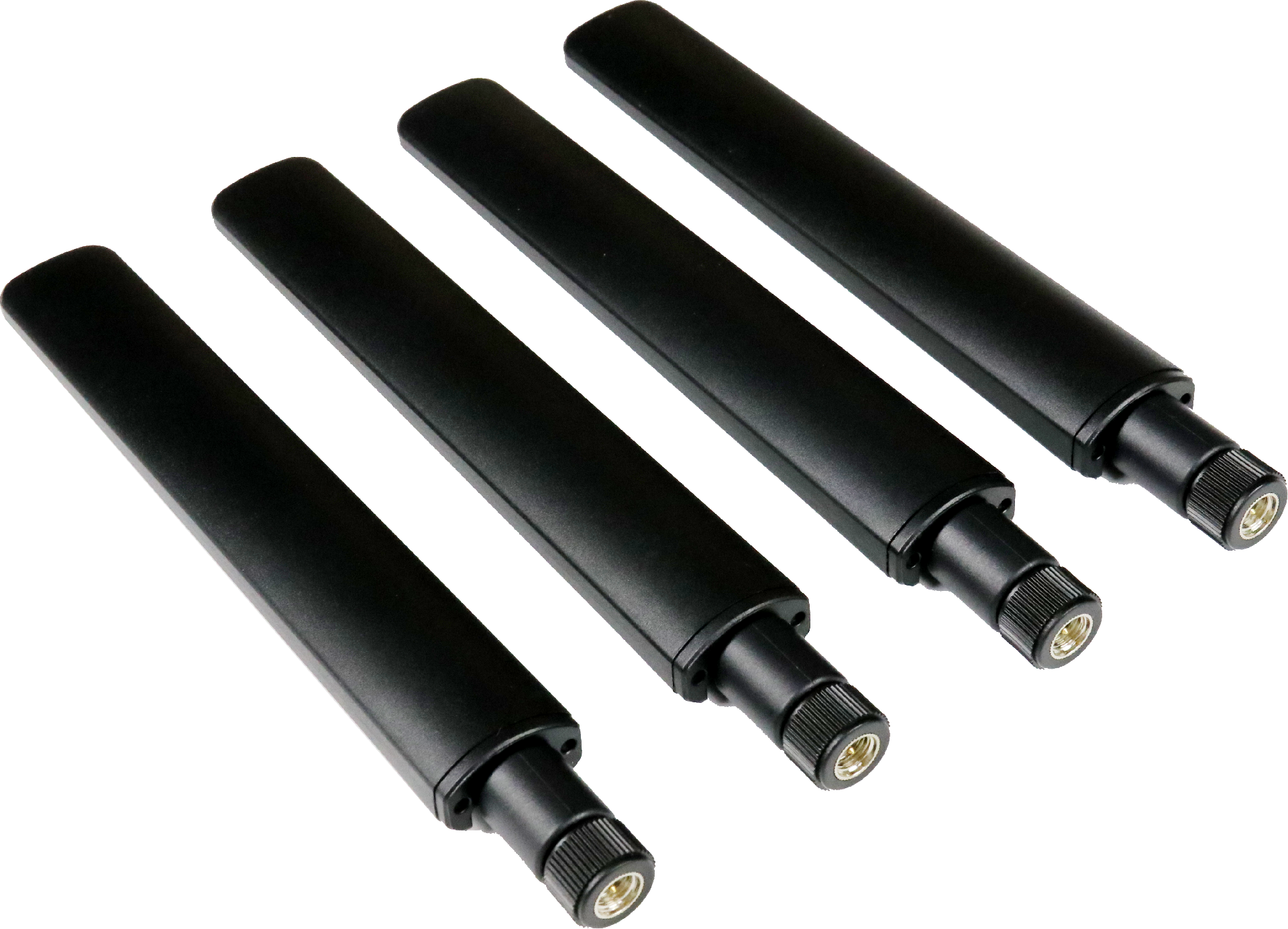

| Number of Antennas | 4 |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
| Wireless Interface |
| Standards | 802.11b/g/n, AP or station modes |
| Frequency Bands | 2.4 GHz |
| Speed | 150Mbps |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |

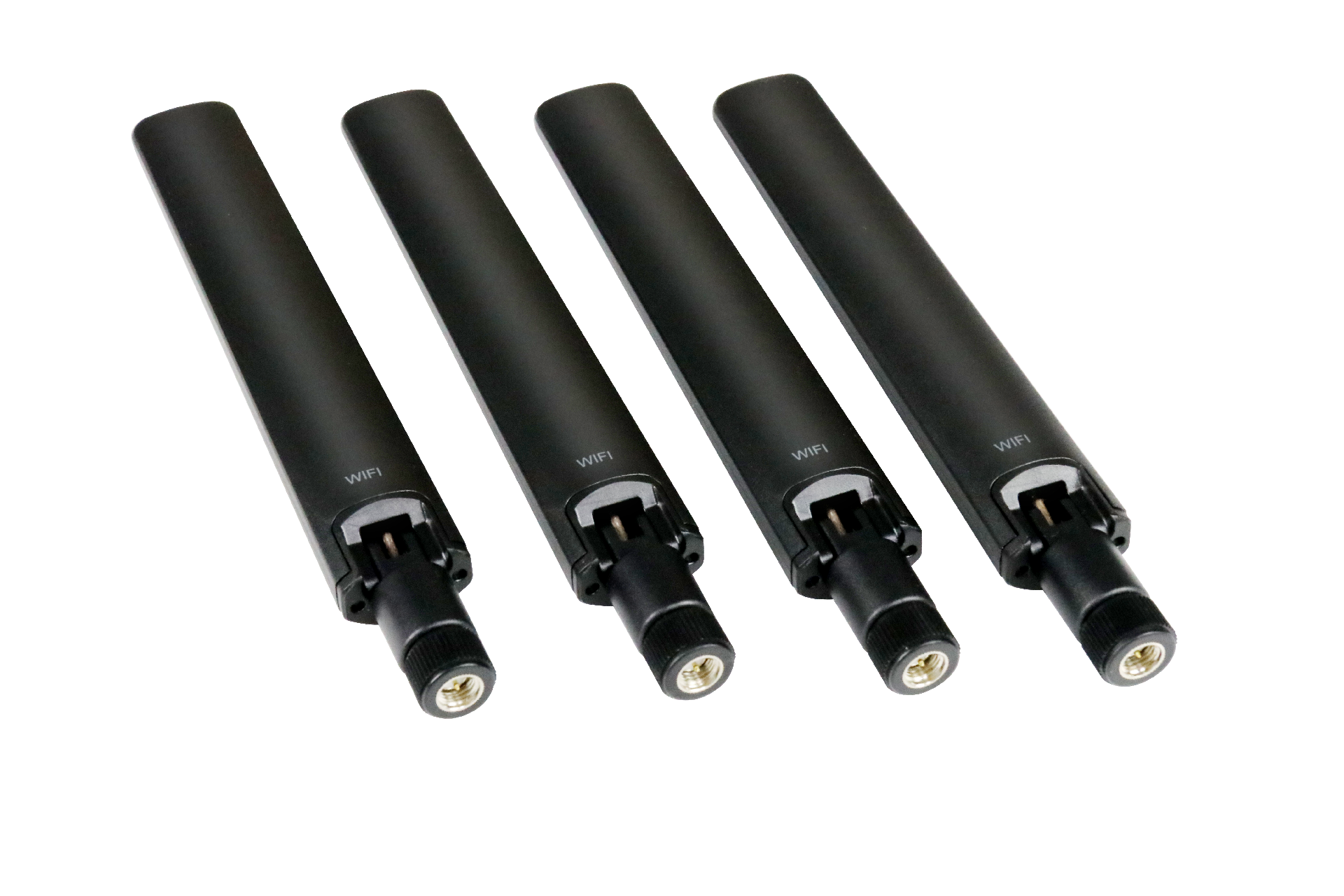

| Antennas | 1 |
| Connector | SMA-K |
| GNSS Interface |
| Number of Antennas | 1 (only for GPS version，Share with WiFi) |
| Connector | SMA-K with 50 ohms impedance |
| Dead Reckoning | N/A |
| Peripheral Interface |

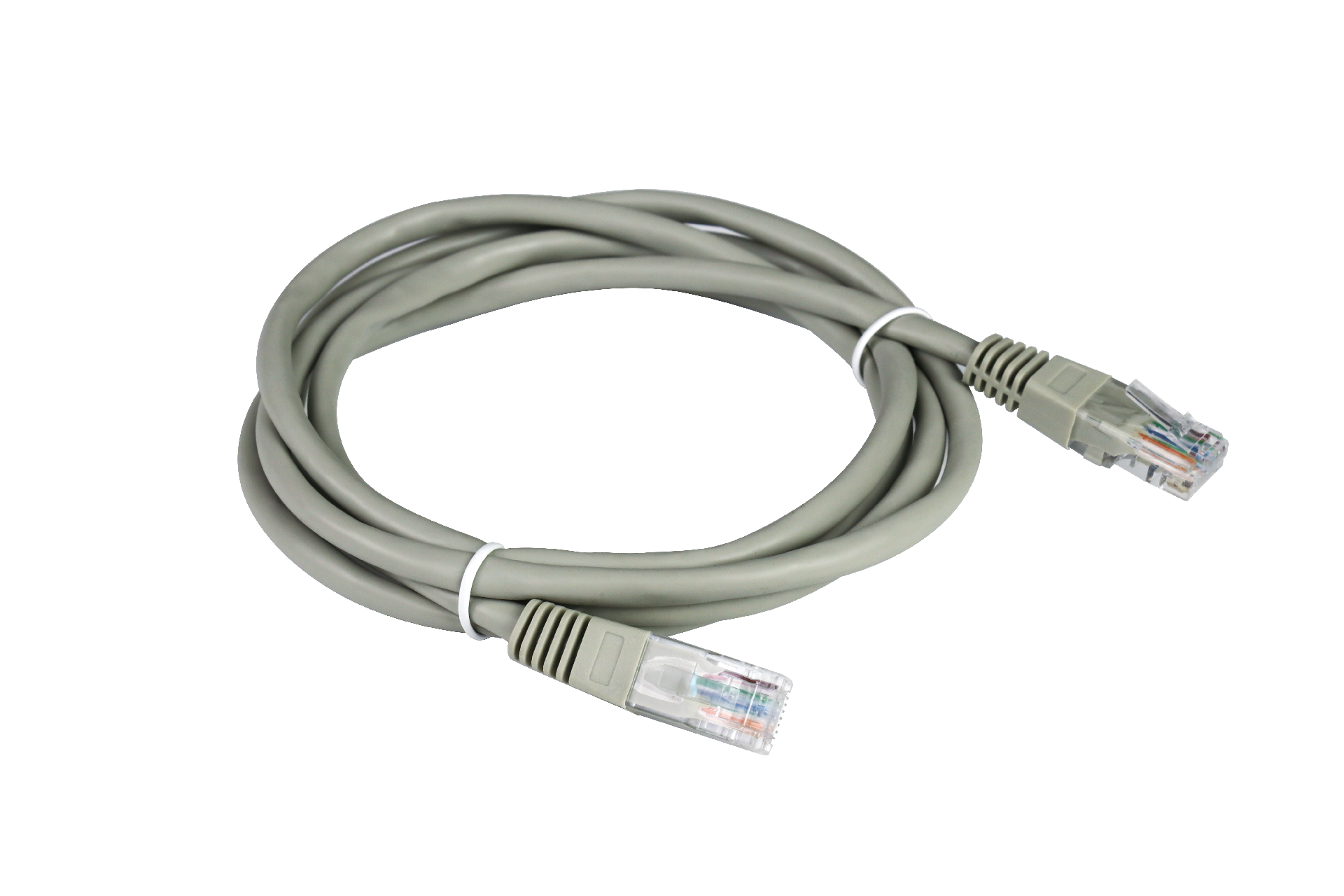

| Ethernet | 1 × LAN 10/100/1000 Mbps + 1 × WAN/LAN 10/100/1000 Mbps, Gigabit Ethernet |
| Serial Type | 1 x RS-232 + 1 x RS-485 serial port |
| Socket Form | 1 x 7-pin 3.5 mm female socket |
| Signal Definition | RX,TX,GND (RS-232)
A+,B-,GND (RS-485) |
| Baudrate | RS-232 (300-115200bps)
RS-485 (300-115200bps) |
| AVOUT | N/A |
| GPIO | N/A |
| SD card | TF card slot |
| USB |
| Video port | N/A |
| Audio Port | N/A |
| Software |
| Auto Fail-over | Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode) |
| Network Protocols | PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. |
| Routing | Static Routing, Policy routing, RIP, OSPF and BGP, etc. |
| Firewall | NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List |
| VPN | PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN |
| Remote Management | HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform |
| Serial Ports Function | Transparent, Modbus RTU, etc. |
| Power Supply and Consumption |
| Connector | 2 pin socket |
| Voltage Input | +9V~+36V DC |
| Power Consumption | Idle: 350mA@12V DC
Data transceiving:1.3A@12V DC |
| Others |
| Reset Button | Yes |
| LED Indicators | 4 x indicators for WiFi, SIG, NET, SYS |
| Hardware Watchdog | Yes |
| Physical Characteristics |
| Ingress Protection | IP66 |
| Housing & Weight | Metal, 290g |
| Dimension | 137×83×24(mm) |
| Installations | Desktop, wall mounting and DIN rail mounting |
| Operating Temperature | -30 ~ +70℃ |
| Storage Temperature | -40 ~ +85 °C |
| Relative Humidity | 5 ~ 95% |
| EMC | |
| ESD | EN61000-4-2, level3 |
| RS | EN 61000-4-3, level3 |
| EFT | EN 61000-4-4, level3 |
| CS | EN 61000-4-6, level3 |
