Consumer Routers

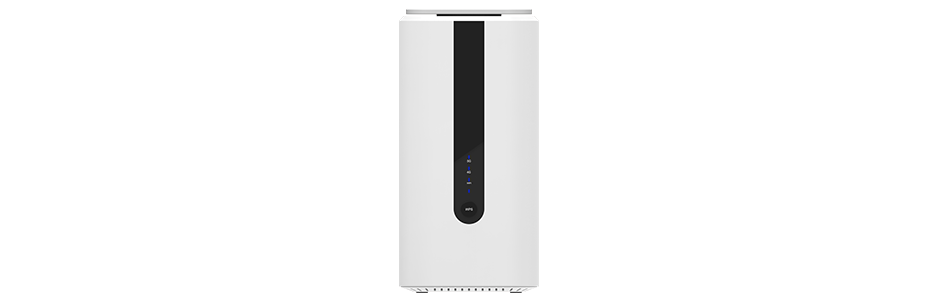

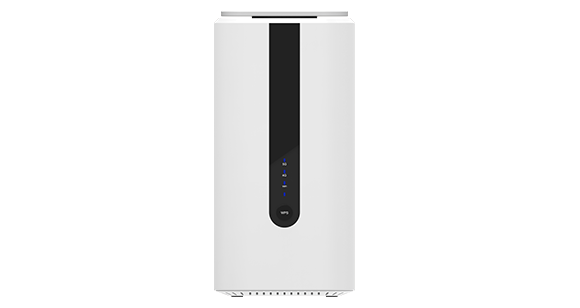

A500Q AX5400 5G CPE

  • Qualcomm X62, 3GPP Rel-16 5G NSA&SA SUB6 support
  • 5G platform with advanced 4nm process
  • Wi-Fi 6 AX5400 specification
  • Up to 10 built-in antennas for 5G & Wi-Fi 6
Product Introduction
A500Q is a 5G & Wi-Fi 6 desktop CPE specially designed for SME and smart home cases. It adopts a simple, integrated and fashionable design with 10 built-in antennas. With simple appearance and powerful performance, it can plug and play to provide a high-speed network access point in SME or families.
Qualcomm Solution
  • Qualcomm X62, 3GPP Rel-16 5G NSA&SA SUB6 support
  • 5G platform with advanced 4nm process
  • Bandwidth up to 160MHz
Wi-Fi 6
  • 4*4 MIMO omnidirectional high-gain Wi-Fi antenna, support up to 128 users
  • Wi-Fi 6 AX5400 specification, 200% speed increase compared to previous generation Support
  • OFDMA, TWT, BSS coloring Wi-Fi 6 technologies to ensure high-speed access
Better Signal
  • Up to 10 built-in antennas for 5G & Wi-Fi 6
  • 4 built-in 5G and 6 built-in Wi-Fi 6 antennas ensure MIMO concurrent speed
  • 3D stereo stacking design antenna ensures minimal interference and optimal reception
High performance interfaces
  • 1×GigE LAN, 1 ×2.5GigE WAN/LAN
  • Support VoLTE/ VoNR
Safety
  • Support port filtering and security firewall
  • Support VPN
HARDWARE
LED indicator Power, Wi-Fi, 4G, 5G
SIM card 4FF SIM (Nano SIM)
VOLTE RJ11*1
KEY RESET, Power, WPS
Built-in antenna 4G/5G antenna*4, Wi-Fi antenna(MU MIMO)*6

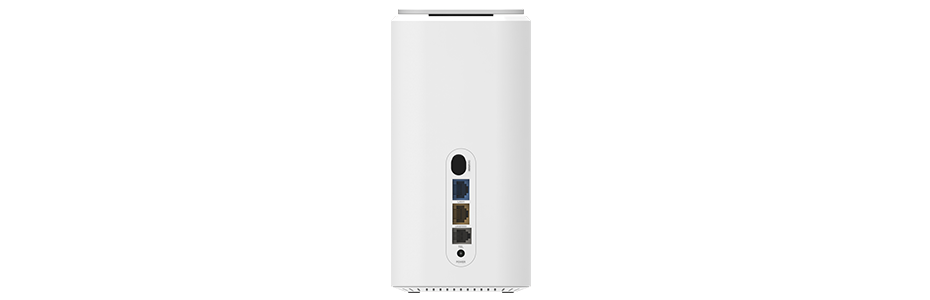

Ethernet 1*10/100/1000Mbps LAN, 1*10/100/1000/2500Mbps LAN/WAN
Operating voltage +12VDC/3A
Weight About 800g
Size 100mm* 100mm* 205mm
Operating temperature -10ºC+45ºC
Relative humidity ≤95%
Storage temperature -30ºC+75ºC
NETWORK
Cellular * 5G NSA Sub-6: 3.2Gbps (DL)/600 Mbps (UL)
5G SA Sub-6: 2.4Gbps (DL)/900 Mbps (UL)
LTE: 1.6 Gbps (DL)/200 Mbps (UL)
WCDMA: 42 Mbps (DL)/5.76 Mbps (UL)
Wi-Fi 6* 2.4GHz: 802.11 a/b/g/n/ac/ax, 2*2 MIMO, 576Mbps
5.8GHz: 802.11 a/b/g/n/ac/ax, 4*4 MIMO, 4804Mbps
Max user: 128
*Theoretical peak value, the actual rate is related to the test environment
File Name
Hongdian Datasheet-A500Q AX5400 5G CPE-2023V1.0
Model 5G modem MIMO WLAN RJ45 Region
A500Q-EA 5G NR:
3GPP Release 16 NSA/SA
operation, Sub-6 GHz
5G NSA & SA:
n1/n3/n5/n7/n8/n20/n28/n38/
n40/n41/n75/n76/n77/n78
4G LTE-FDD:
B1/B3/B5/B7/B8/B20/B28/B32
4G LTE-TDD:
B38/B40/B41/B42/B43
3G WCDMA:
B1/B5/B8 		5G DL 4×4 MIMO on:
n1/n3/n7/n38/n40/n41/
n75/n76/n77/n78
LTE DL 4 × 4 MIMO on:
B1/B3/B7/B38/B40/B41/
B42/B43 		Wi-Fi 6 2.4GHz & 5GHz,
AX5400 		1×10/100/1000bps LAN;
1×10/100/1000/2500Mbps
LAN/WAN 		EMEA/Oceania/Brazil
A500Q-NA 5G NR:
3GPP Release 16 NSA/SA
operation, Sub-6 GHz
5G NSA & SA:
n2/n5/n7/n12/n13/n14/n25/n26/n29/
n30/n38/n41/n48/n66
4G LTE-FDD:
B2/B4/B5/B7/B12/B13/B14/B17/
B25/B26/ B29/B30/B66/B71
4G LTE-TDD:
B38/B40/B41/B42/B43 		5G DL 4×4 MIMO on:
n2/n7/n25/n30/n38/n41/
n48/n66/n70/n77/n78
LTE DL 4 × 4 MIMO on:
B2/B4/B25/B30/B41/B42/
B43/B48/B66 		Wi-Fi 6 2.4GHz & 5GHz,
AX5400 		1×10/100/1000bps LAN;
1×10/100/1000/2500Mbps
LAN/WAN 		North America

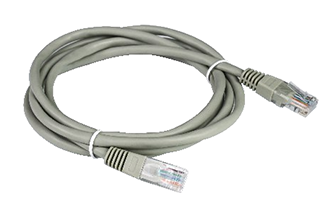

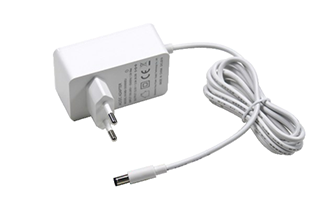

Compatible Accessories
