| Hardware |
| CPU | Dual-core, 1.35 GHz, ARM Cortex A53 |
| RAM | 256MB |
| FLASH | 32MB |

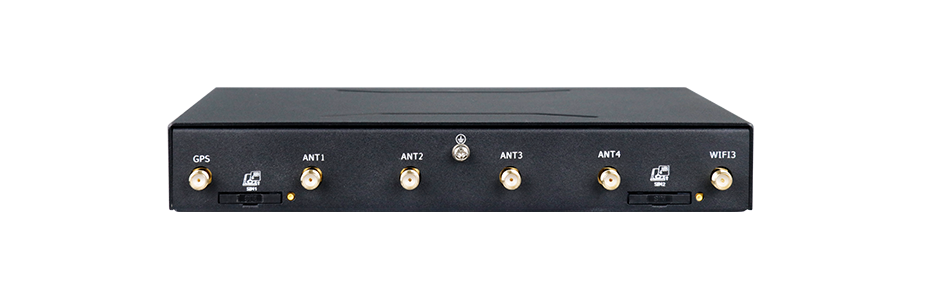

| Cellular Interface |
| Modem | 1 × 5G NR SA/NSA or 2 × LTE-A or 1 × LTE-A & 1 × 5G NR SA/NSA |
| SIM | 2 × Mini SIM (2FF) (eSIM optional) |
| Connector | SMA-K |
| Number of Antennas | 4 |

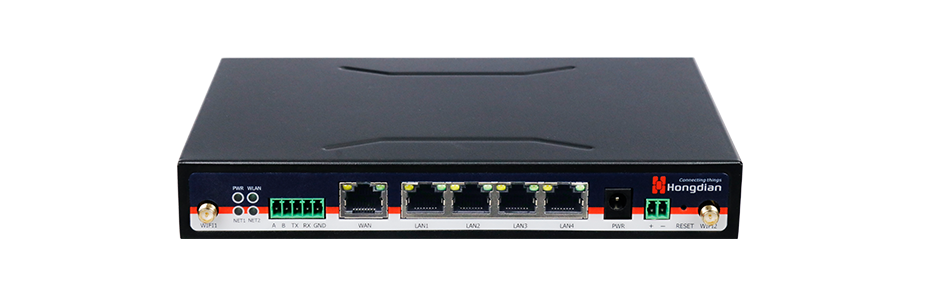

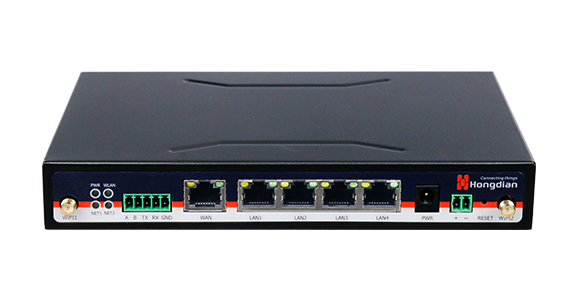

| Ethernet Interface |
| Number of Ports | 5 × 10/100/1000 Mbps, Gigabit Ethernet |
| Configuration | 4 × LAN + 1 × WAN |
| PoE Output | POE+ 30W output × 4 |

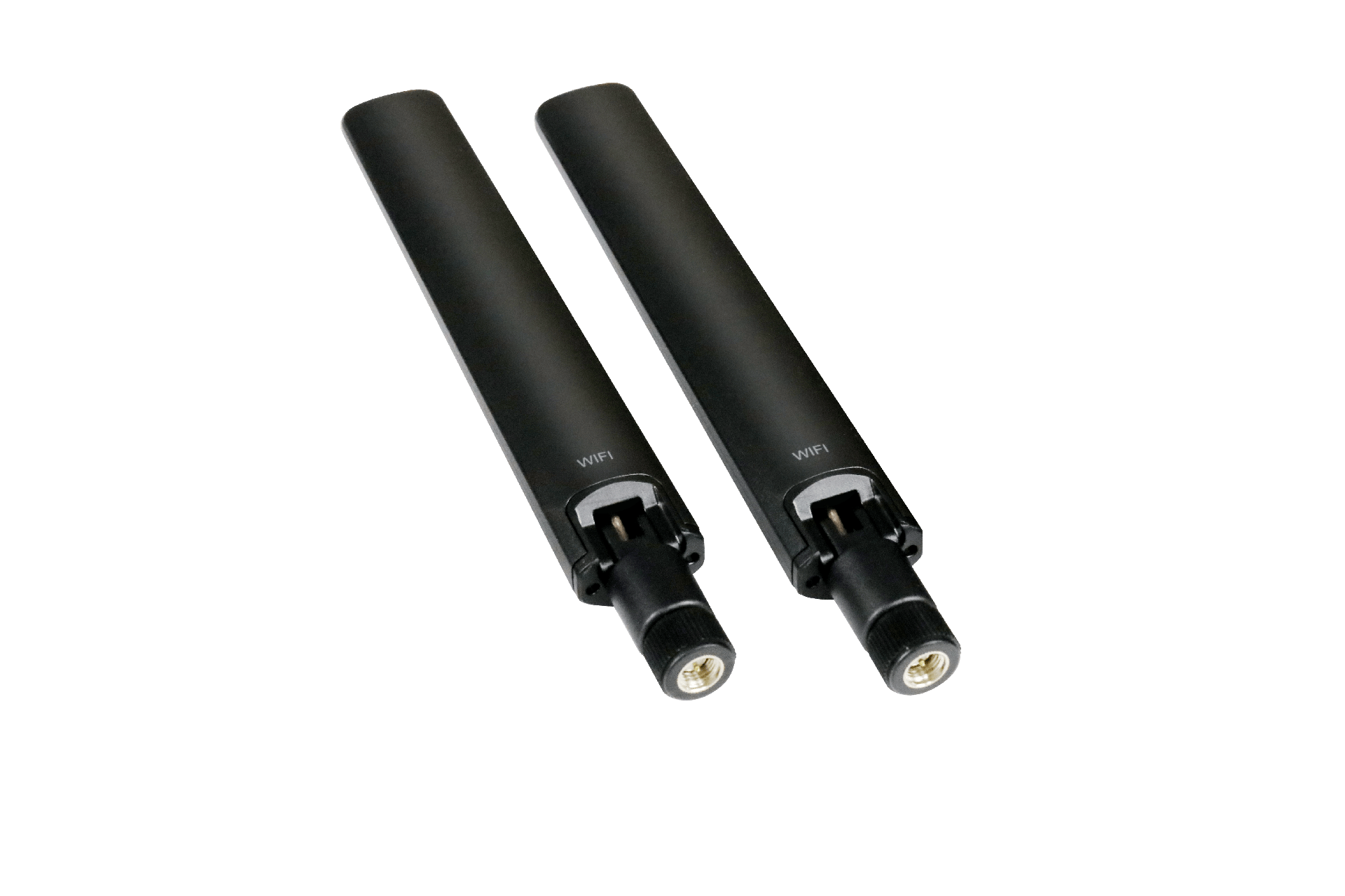

| Wireless Interface |
| Standards | 802.11b/g/n/ac/ax, AP or station mode |
| Frequency Bands | 2.4 GHz & 5 GHz |
| Speed | 2402Mbps on 5GHz, 576Mbps on 2.4GHz |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |
| Antennas | 3 |
| Connector | RP SMA-K |
| GNSS Interface |
| Number of Antennas | 1 (only for GPS version) |
| Connector | SMA-K with 50 ohms impedance |
| Seiral Interface |
| Type | 1 × RS-232 + 1 × RS-485 serial port |
| Socket Form | 1 × 5-pin 3.5 mm female socket |
| Signal Definition | RX, TX, GND, A+, B- |
| Baudrate | RS-232 (300-115200bps), RS-485 (300-115200bps) |
| Software |
| Auto Fail-over | Between: 2 Cellulars, Cellular and WAN, Cellular and Wi-Fi (station mode), WAN and Wi-Fi (station mode) |
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH, DDNS, etc. |
| Network | APN, VPDN, VLAN, QoS |
| Routing | Static Routing, Policy routing, RIP, and OSPF, etc |
| Firewall | NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List |
| Attack Prevention | DDOS prevention, Anti port scanning |
| VPN | PPTP/L2TP/GRE/IPSec/OpenVPN/WireGuard |
| Ipsec Encryption | DES, 3DES, AES128, AES192, AES256 |
| OpenVPN Encryption | BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,
AES-192-CBC, AES-256-CBC, SEED-CBC |
| Remote Management | HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Cloud Platform, SDLAN, SDWAN |
| Serial Ports Function | Transparent, Modbus RTU, etc |

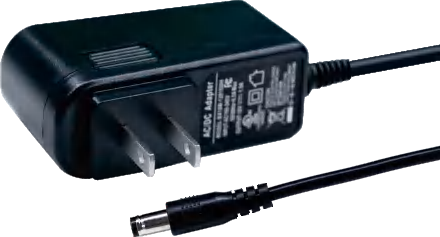

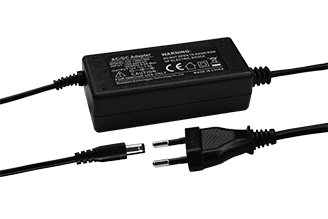

| Power Supply and Consumption |
| Connector | DC socket or 2 pin socket |
| Voltage Input | +9V~+57V DC |
| Others |
| Reset Button | Yes |
| Hardware Watchdog | Yes |
| LED Indicators | 4 indicators for PWR, WLAN, NET1, NET2 |
| Physical Characteristics |
| Ingress Protection | IP30 |
| Housing & Weight | Metal, 980g |
| Dimension | 191.5×125.0×28.5(mm) |

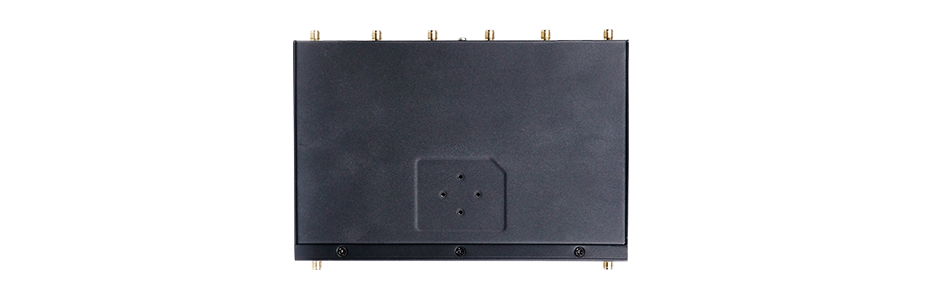

| Installations | Desktop, wall mounting, 35 mm DIN rail mounting |
| Operating Temperature | -30 ~ +70 °C |
| Storage Temperature | -40 ~ +85 °C |
| Relative Humidity | ≤ 95% (no condensing) |
| EMC |
| ESD | EN61000-4-2, level3 |
| EFT | EN 61000-4-4, level3 |
| CS | EN 61000-4-6, level3 |
| RS | EN 61000-4-3, level3 |
| Surge Protection | EN 61000-4-5, level2 |
