    Consumer Routers

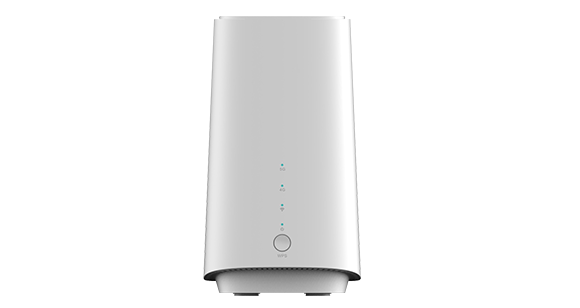

    A500M AX3600 5G CPE

    • 5G platform with advanced 7nm process
    • Wi-Fi6 AX3600 specification
    • Support OFDMA, TWT, BSS coloring Wi-Fi6 technologies
    • Up to 12 built-in antennas for 5G & Wi-Fi 6
    Product Introduction
    A500M is a 5G & Wi-Fi 6 desktop CPE specially designed for SME and smart home cases. It adopts a simple, integrated and fashionable design with 12 built-in antennas.With simple appearance and powerful performance, it can plug and play to provide a high-speed network access point in SME or families.
    MTK Solution
    • MediaTek T750 SOC, 3GPP Rel-15 5G NSA&SA Sub-6 support
    • 5G platform with advanced 7nm process
    • Bandwidth up to 200MHz
    • The downlink speed up to 4.67Gbps
    Wi-Fi 6
    • 4*4 MIMO omnidirectional high-gain Wi-Fi antennas, support up to 64 users
    • Wi-Fi6 AX3600 specification, 100% speed increase compared to previous version
    • Support OFDMA, TWT, BSS coloring Wi-Fi6 technologies to ensure high-speed access
    Better Signal
    • Up to 12 built-in antennas for 5G & Wi-Fi 6
    • 8 built-in 5G and 4 built-in Wi-Fi6 antennas ensure MIMO concurrent speed
    • 3D stereo stacking design antenna ensures minimal interference and optimal reception
    High performance interfaces
    • 1×GigE LAN, 1×GigE WAN/LAN
    • Support VoLTE/ VoNR
    Safety
    • Support port filtering and security firewall
    • Support VPN
    HARDWARE
    Network 5G/4G/3G
    LED indicator Power, Wi-Fi, 4G, 5G
    SIM card 4FF SIM(Nano SIM)
    VOLTE RJ11*1
    KEY RESET, Power, WPS
    Built-in antenna 4G/5G antenna*8, Wi-Fi antenna(MU MIMO)*4
    Ethernet 1*10/100/1000Mbps LAN, 1*10/100/1000Mbps LAN/WAN
    Operating voltage +12VDC/2A
    Weight About 610g (without power adapter)
    Size 94.3mm* 107.1mm* 186.5mm
    Operating temperature -10ºC+55ºC
    Relative humidity ≤95%
    Storage temperature -20ºC+70ºC
    NETWORK
    Cellular* 5G NSA Sub-6:3.74Gbps (DL)/1.46Gbps (UL)
    5G SA Sub-6: 4.67Gbps (DL)/2.5Gbps (UL)
    LTE: 1.4Gbps (DL)/211Mbps (UL)
    WCDMA: 42 Mbps (DL)/5.76 Mbps (UL)
    Wi-Fi 6* 2.4GHz:802.11 a/b/g/n/ac/ax, 4*4 MIMO, 1200Mbps
    5.8GHz: 802.11 a/b/g/n/ac/ax, 4*4 MIMO, 2400Mbps
    Max user: 64
    *Theoretical peak value, the actual rate is related to the test environment


    File Name
    Hongdian Datasheet-A500M AX3600 5G CPE-2023V1.0
    Model 5G modem MIMO WLAN RJ45 Region
    A500M-D 5G NR:
    3GPP Release 16 NSA/SA
    operation, Sub-6 GHz
    5G NSA & SA:
    n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78
    4G LTE-FDD:
    B1/B3/B5/B7/B8/B20/B28/B32
    4G LTE-TDD:
    B38/B40/B41/B42/B43
    3G WCDMA:
    B1/B5/B8     		5G DL 4×4 MIMO on:n1/n3/n7/n38/n40/n41/n75/n76/n77/n78
    LTE DL 4 × 4 MIMO on:B1/B3/B7/B38/B40/B41/B42     		Wi-Fi 6 2.4GHz & 5GHz,AX3600 1×10/100/1000bps LAN;
    1×10/100/1000/2500Mbps
    LAN/WAN     		EMEA/Oceania/Brazil
    A500M-S 5G NR:
    3GPP Release 16 NSA/SA
    operation, Sub-6 GHz
    5G NSA & SA:
    n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n70/n71/n77/n78
    4G LTE-FDD:
    B1/B3/B5/B7/B8/B20/B28/B32
    4G LTE-TDD:
    B38/B40/B41/B42/B43
    3G WCDMA:
    B1/B5/B8     		5G DL 4×4 MIMO on:
    n1/n3/n38/n40/n41/n77/n78
    LTE DL 4 × 4 MIMO on:
    B1/B3/B7/B38/B40/B41/B42     		Wi-Fi 6 2.4GHz & 5GHz,AX1800 1×10/100/1000bps LAN;
    1×10/100/1000/2500Mbps
    LAN/WAN     		North America

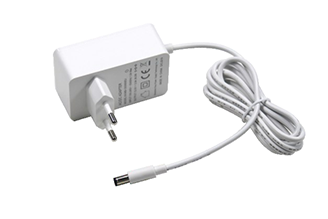

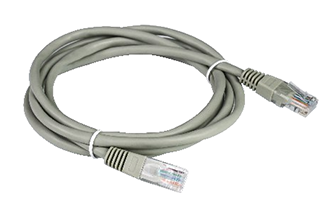

    Compatible Accessories

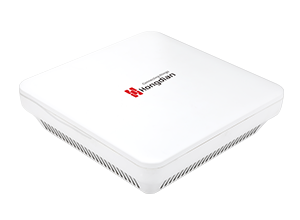

    Related Products
