Product
|
|
|
|
|
Cellular Router
|

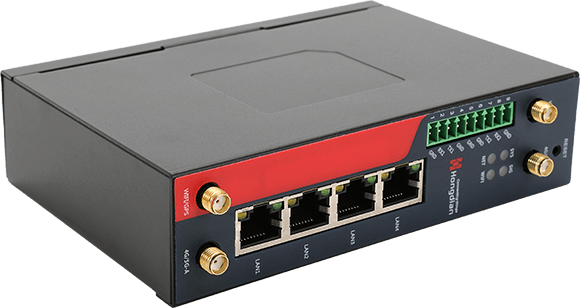

H7960
|
H3960
|
H3318C
|
|
Hardware
|
|
CPU
|
MIPS 24Kc @580 MHz
|
Dual core ARM Cortex-A72 + Dual core ARM Cortex-A53 @2.0GHz
|
Quad core ARM Cortex-A7 @1.5GHz
|
|
Cellular Interface
|
|
Modem
|
1 x LTE CAT4
|
1 or 2 x 5G NR SA/NSA or 1 x LTE CAT4 & 2 x 5G NR SA/NSA
|
1 x LTE CAT1 or 1 x 5G NR SA/NSA
|
|
Number of antennas
|
2
|
4 or 8 or 10
|
4
|
|
Connector
|
SMA-K
|
SMA-K
|
SMA-K
|
|
SIM
|
2 x Mini SIM (2FF)
|
3 × Mini SIM (2FF)
|
1 × Mini SIM (2FF)
|
|
Ethernet Interface
|
|
Number of ports
|
4 x 10/100 Mbps, Ethernet
|
3 ×10/100/1000Mbps + 1 × 10/100/1000Mbps, Gigabit Ethernet
|
1 × 10/100Mbps
|
|
Configuration
|
4 x LAN or 3 x LAN + 1 x WAN
|
3 × LAN + 1 × WAN/LAN
|
1 × LAN
|
|
PoE output
|
4 x POE+ 30W output
|
N/A
|
N/A
|
|
Wireless interface
|
|
Standards
|
802.11b/g/n, AP or station mode
|
802.11b/g/n/ac, AP or station modes
|
802.11b/g/n, AP or station modes
|
|
Frequency bands
|
2.4 GHz
|
2.4 GHz & 5GHz
|
2.4 GHz
|
|
Speed
|
150Mbps
|
1167Mbps
|
150Mbps
|
|
Security
|
WEP, WPA, WPA2
|
WEP, WPA, WPA2
|
WEP, WPA, WPA2
|
|
Encryption
|
64/128 AES, TKIP
|
64/128 AES, TKIP
|
64/128 AES, TKIP
|
|
Antennas
|
1
|
1
|
1
|
|
Connector
|
RPSMA-K
|
SMA-K
|
SMA-K
|
|
GNSS interface
|
|
Number of antennas
|
1 (only for GPS version)
|
1
|
1
|
|
Connector
|
SMA-K with 50 ohms impedance
|
SMA-K
|
SMA-K
|
|
Dead Reckoning
|
Optional
|
N/A
|
N/A
|
|
Seiral interface
|
|
Type
|
1 x RS-232 + 1 x RS-485 serial port
|
2 x RS-232 (2 x RS-232 port can be configured as a RS-485 port)
2 x RS-485 serial port
|
2 × RS-232 + 1 × RS-485 serial port
|
|
Software
|
|
Auto fail-over
|
Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
|
Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
|
Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
|
|
Network
|
APN, VPDN, VLAN, QoS
|
Muti-DNN, APN, VPDN, QoS, 5G LAN
|
APN, VPDN, QoS
|
|
Firewall
|
NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
|
NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
|
NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
|
|
VPN
|
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard
|
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
|
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
|
|
|
AES-192-CBC, AES-256-CBC, SEED-CBC
|
|
Remote Management
|
HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN
|
HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform
|
HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform
|
|
Serial ports function
|
Transparent, Modbus RTU, etc
|
Transparent, Modbus RTU, etc.
|
Transparent, Modbus RTU, etc.
|
|
Power Supply and Consumption
|
|
Power Connector
|
4 pin socket
|
4 pin socket
|
4 pin socket
|
|
Voltage input
|
+9V~+54V DC
|
DC 12V～36V
|
DC 9V～36V
|
|
Power consumption
|
Idle: 100mA@12V DC
|
Idle: 400mA@24V DC
|
Less than 15W (including camera)
|
|
Data transceiving: 350mA@12V DC
|
Data transceiving: 1.5A@24V DC
|
|
Others
|
|
Reset button
|
Yes
|
Yes
|
Yes
|
|
LED indicators
|
4 x indicators for SYS, SIG, NEY, WIFI
|
6 x indicators for PWR, WiFi, 4G, NET1, NET2, NET3,ONL
|
N/A
|
|
Hardware watchdog
|
Yes
|
Yes
|
Yes
|
|
Physical Characteristics
|
|
Ingress protection
|
IP30
|
IP30
|
IP30
|
|
Housing & Weight
|
Metal, 480g
|
Metal, about 1200g（Dual 5G module）
|
SECC, about 1300g
|
|
Dimension
|
147×98×36.6(mm)
|
235×164.3×55.5mm
|
177×188×58(mm)
|
|
Installations
|
Desktop, wall mounting and 35 mm DIN rail mounting
|
Wall-mounting
|
Wall-mounting
|
|
Operating temperature
|
-30 ~ +70℃
|
-30 ~ +75 °C
|
-20 ~ +70 °C
|
|
Storage temperature
|
-40 ~ +85 °C
|
-40 ~ +80 °C
|
-40 ~ +80 °C
|
|
Relative humidity
|
0~95%(no condensation)
|
5 ~ 95%
|
0~90%(no condensation)
|
|
EMC
|
|
ESD
|
EN61000-4-2, level3
|
EN61000-4-2, level3
|
EN61000-4-2, level3
|
|
RS
|
EN 61000-4-3, level3
|
EN 61000-4-3, level3
|
EN 61000-4-3, level3
|
|
EFT
|
EN 61000-4-4, level3
|
EN 61000-4-4, level3
|
EN 61000-4-4, level3
|
|
CS
|
EN 61000-4-6, level3
|
EN 61000-4-6, level3
|
EN 61000-4-6, level3
|
